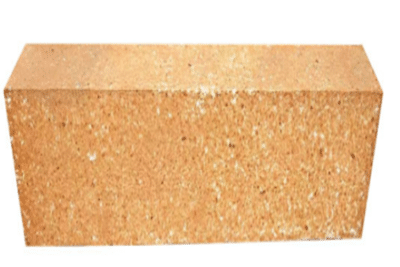

Clay Brick
clay brick
Features:
Clay brick is made of 50 soft clay and 50 hard clay clinker alumina content of 30%-48% refractory products, can resist acid slag and acid gas erosion, the resistance to alkaline substances slightly poor, clay fire brick has good thermal performance, resistance to cold and heat.
Application:
Clay refractory bricks are mainly used in non-ferrous industry, thermal boilers, glass kilns, cement kilns, chemical fertilizer gas furnaces, blast furnaces, hot blast furnaces, coke furnaces, electric furnaces, casting and casting steel bricks.
|
Clay Brick |
|||||||||
| Item NO | N-1 | N-2a | N-2b | N-3a | N-3b | N-4 | N-5 | N-6 | |
| Physical Property: | |||||||||
| Refractoriness℃ | ≥ | 1750 | 1730 | 1730 | 1710 | 1710 | 1690 | 1670 | 1580 |
| Apparent Porosity(%) | ≤ | 22 | 24 | 26 | 24 | 26 | 26 | 26 | 28 |
| Cold Crushing Strength(MPa) | ≥ | 29.4 | 24.5 | 19.6 | 19.6 | 14.7 | 19.6 | 14.7 | 14.7 |
| 0.2MPa Refractoriness Under Load | ≥ | 1400 | 1350 | – | 1320 | – | 1300 | – | – |
| Reheat linear change(1350℃,2h) | * | +0.1
-0.4 |
+0.1
-0.5 |
+0.2
-0.5 |
+0.2
-0.4 |
+0.2
-0.5 |
+0.2
-0.5 |
+0.2
-0.5 |
– |
| Note:All data are average values obtained at samples for laboratory purposes. | |||||||||

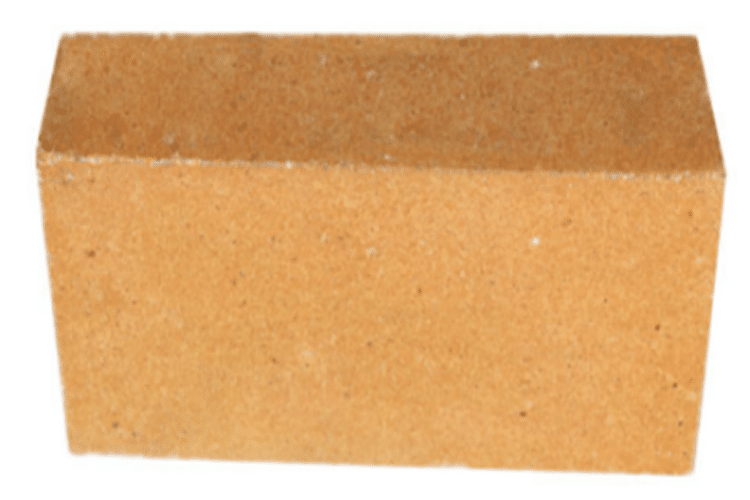

Low-porosity Clay Brick
clay brick
Features:
The raw materials of low-porosity clay bricks include burnt gem aggregate, soft clay binder, auxiliary materials and additives, etc., after reasonable classification, the raw materials are fully mixed, then formed under high pressure, and sintered at 1400℃. Low porosity clay fire brick has better high temperature volume stability, lower creep rate and better wear resistance.
Application:
Low-porosity clay refractory bricks are used in kilns in the steel, non-ferrous metals, glass and ceramics industries.
| ITEM No | Low porosity clay brick | |||
| DN-12 | DN-15 | |||
| Physical Property: | ||||
| Bulk Density(g/cm3) | ≥ | 2.37 | 2.30 | |
| Cold Crushing Strength(MPa) | ≥ | 68 | 60 | |
| 0.2Mpa Refractoriness Under Load | ≥ | 1500 | 1470 | |
| Refractoriness | ≥ | 1770 | 1770 | |
| Apparent porosity | ≤ | 12 | 15 | |
| Reheat linear change( 1400℃,2h) | * | -0.1
+0.05 |
0
-0.2 |
|
| Chemical Analysis(%) | ||||
| Al2O3 | ≥ | 45 | 42 | |
| Fe2O3 | ≤ | 1.2 | 1.5 | |
| Note:All data are average values obtained at samples for laboratory purposes. | ||||
-
- factory show
-
- factory show
-
- refractory brick
-
- factory show
-
- customer cases
-
- customer cases
-
- customer cases
-
- customer cases
About Lianxin:
The company has more than 20 patented technologies, more than 20 corporate honors, and international certifications such as ISO. With an annual output of 300,000 tons, the company is a leader in China’s refractory industry. As a refractory materials manufacturer, we will provide you with factory direct prices. With more than 20 years of experience and a team of more than 200 professionals, we are committed to helping you find a solution that suits your needs.
What is the Price of Clay Bricks Price?
The main factors affecting the price include: quantity and type. Clay fire bricks are key components for building kilns. Lianxin team will provide different pricing plans according to the different needs of customers. The price of clay refractory bricks varies depending on the quantity and model selected. Customers who order large quantities of the same model can enjoy greater discounts.
About delivery time: Standard size bricks can be delivered immediately.
Regarding customized clay fire bricks, we have rich experience, short production cycle and fast delivery time.
In addition, we can also provide kiln material solutions and a series of technical guidance for construction according to the specific needs of customers.
Lianxin clay refractory bricks are your solution!
With over 20 years of experience and a team of over 200 professionals, we are committed to helping you find the solution that’s right for you.
